PLEASE NOTE: These pages are now for historical purposes. Music and Design is no longer offering these products for sale.
Previous customers may contact Music and Design for followup inquiries.
Following the concepts originally applied in the NaO Note
Music and Design is please to present the revision to the NaO Note, the Note II RS,
The NaO Note Note II RS Prototype Revealed
Introduced October, 2010 October 21, 2012
Introduced October, 2010 October 21, 2012
Note II Rs with grill.
(Camera flash reveals
grill frame.) Mouse
over shows speaker
w/o grill. Shown with
XLS woofers.
(Camera flash reveals
grill frame.) Mouse
over shows speaker
w/o grill. Shown with
XLS woofers.
The NaO Note II RS,
The next development from the leader in extended range dipoles speakers.
The next development from the leader in extended range dipoles speakers.
1st order Coupler

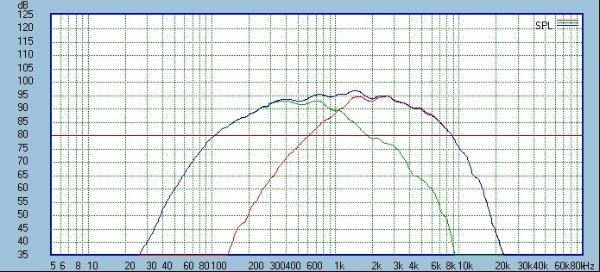

2nd order Coupler
4th order Coupler
Overlay of the 3 coupled responses
Group Delay comparison
Red - 1st order
Green - 2nd order
Blue - 4th order
Red - 1st order
Green - 2nd order
Blue - 4th order
